CC1 – Column composition

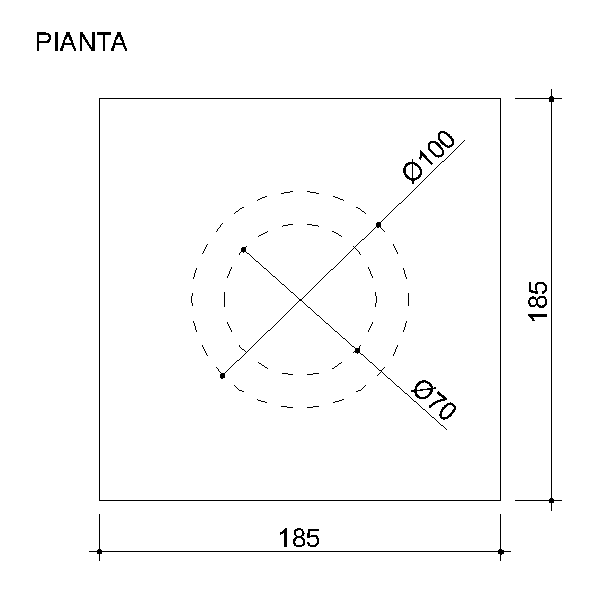

Column composition diam. 100 mm in alabaster plaster with reinforcing fibers,  dim. 185 mm x 185 mm, with customized height (H).

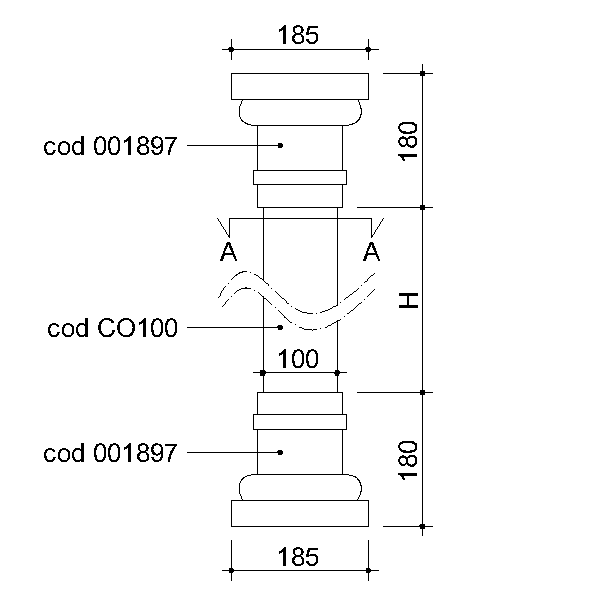

The composition will be supplied as follows:

•  n°1 whole base cod. 001897,
  dimensions: 185 mm x 185 mm, height(H) 180 mm

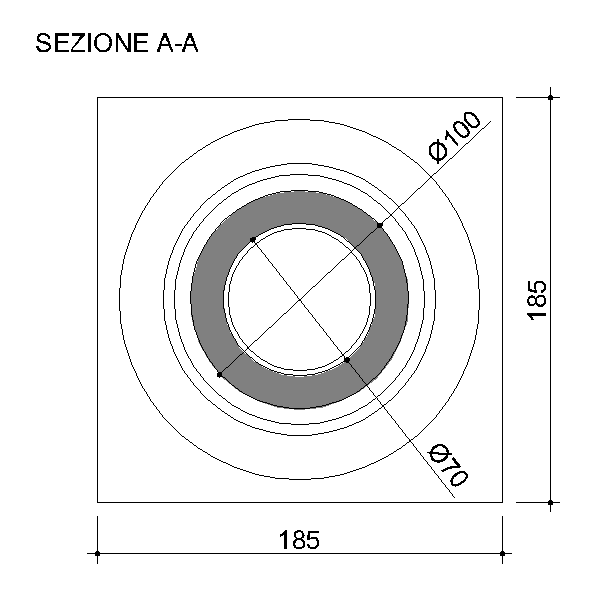

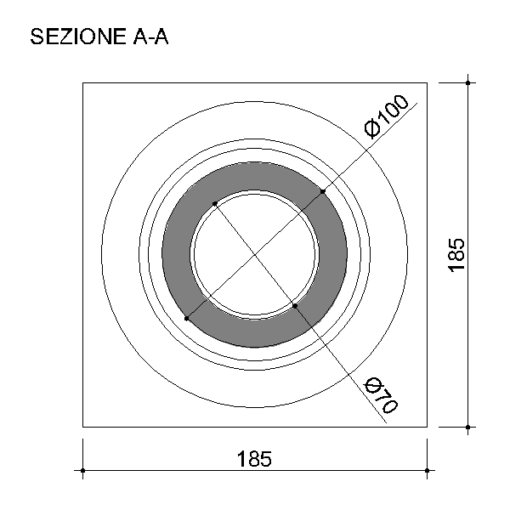

•  n° X* half shafts cod. CO100 , external diameter 100 mm, internal diameter** 70 mm, customized height (H)

•  n°1 whole capital cod. 001897,
  dimensions: 185 mm x 185 mm, height(H) 180 mm

Note: the half shafts are made with some internal bracket to ensure the geometrical features and to ease the handling. If necessary, the brackets can be removed for the installation.

* X = quantity of the half shafts according to the height of the column

** If the column is used as a covering of an element, check that the internal diameter of the shaft is larger than the space to be covered.
